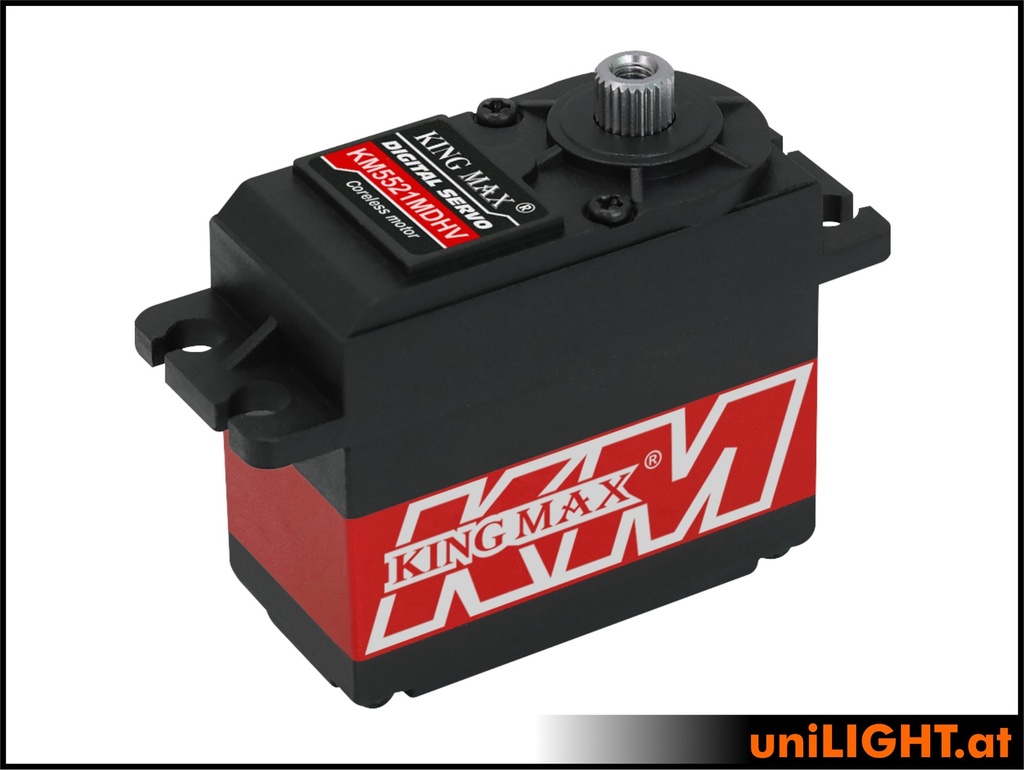

20mm Standard Servo KM5521MDHV, HV, MG
KM5521MDHV
The KM5521MDHV is a powerful 20mm standard servo with partial metal housing and high-voltage capability (up to 7.4V). It features a high-performance, programmable digital design with high-precision steel gears and a coreless motor for smooth operation. The dual ball bearing system ensures reliability and durability, making it an excellent choice for demanding applications where precision and longevity are required.
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Voltage: DC5.0~8.4V
Operating Speed (6.0V): 0.16sec/60°
Operating Speed (7.4V): 0.14sec/60°
Stall Torque (6.0V): 18.5kg.cm
Stall Torque (7.4V): 21.3 kg.cm
Dimentions:40x20x36.5mm
Weight: 61g
Bearings: 2BB
Connector/ Wire : 22AWG,JR265 mm
Spline: 25T (Futaba)
| Stall Torque (7.4V): 21.3kg.cm |
| Stall Torque (6V): 18.5kg.cm |
| Speed (7.4V): 0.14sec/60° |
| Speed (6V): 0.16sec/60° |
| Family: 20mm Economy |
| Weight: 61g |
| Gear: Metall |
| Body: Teil-Aluminium |
| Ball Bearings: 2BB |
| Motor: Coreless |
| Softstart: No |
| Programmable: No |
| Axis: 5.90/25T/Futaba |
| Width: 20.5mm |
| Length: 40.5mm |
| Height: 36mm |
Internal Reference:
KM5521MDHV
