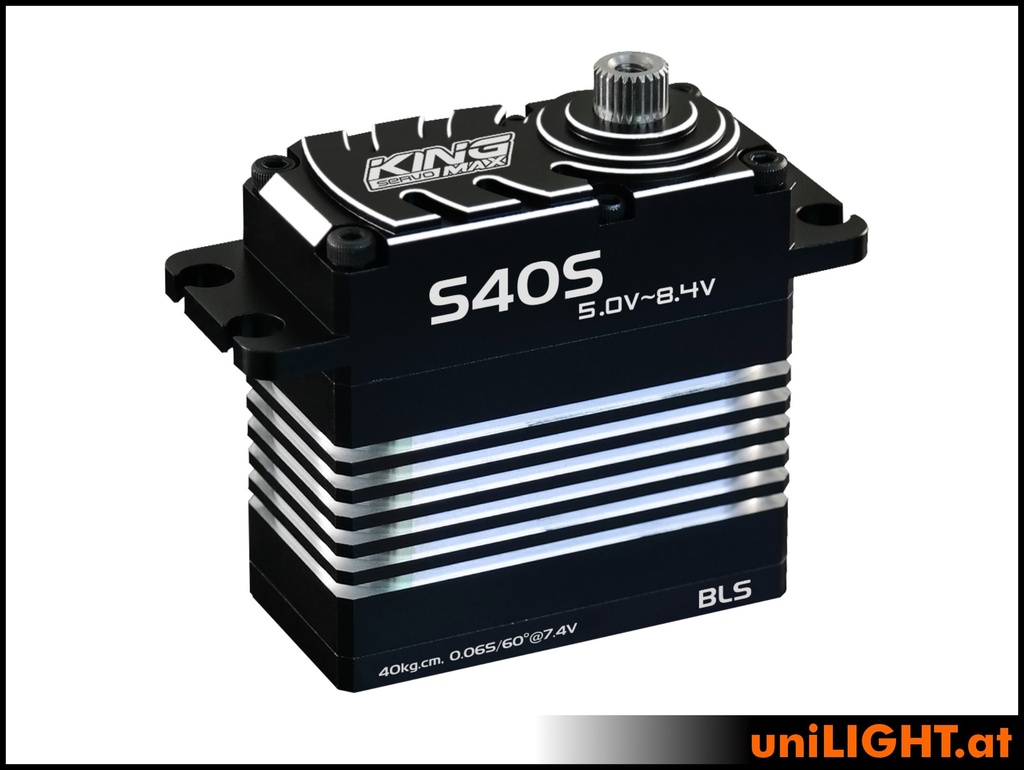

20mm Standard Servo S40S, HV, ALU, MG
S40S

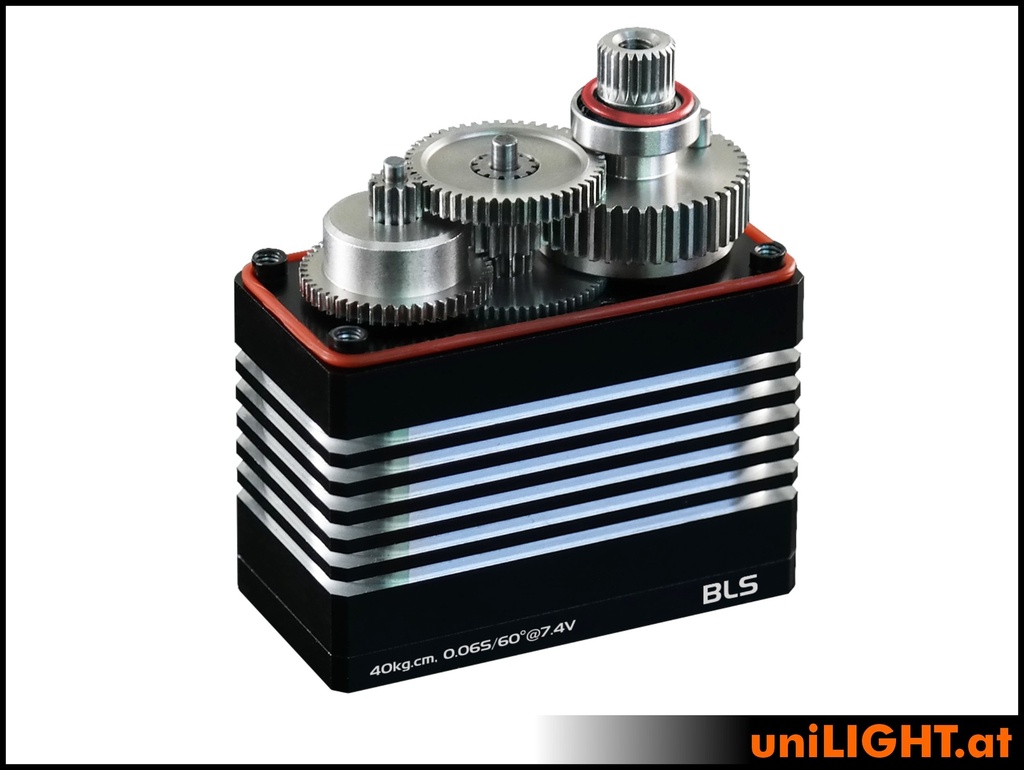

The S40S HV Servo from the STORM series in the 20mm class. Built for high-performance applications, it features high-precision steel gears, a robust CNC-machined aluminum case, and a premium brushless motor for exceptional reliability and longevity. Designed for demanding tasks, it offers a soft start mechanism for smooth operation, is fully waterproof, and supports High Voltage up to 8.4V, making it perfect for large models.
Operating Speed(5.0V):0.10sec/60degrees
Operating Speed(6.0V):0.08sec/60degrees
Operating Speed(7.4V):0.06sec/60degrees
Operating Speed(8.4V):0.05sec/60degrees
Stall torque(7.4V):40kg.cm(555.60oz/in)
Maximum working torque(7.4V):30kg.cm(416.70oz/in)
Dimensions:40*20*39.8mm/1.56X0.78X1.55in
Weight:89g(3.13oz)
Connector Wire Length:JR300mm(11.7in)
| Stall Torque (8.4V): 42kg.cm |
| Stall Torque (7.4V): 40kg.cm |
| Stall Torque (6V): 31kg.cm |
| Blokiermoment(5V): 23kg.cm |
| Speed (8.4V): 0.05sec/60° |
| Speed (7.4V): 0.06sec/60° |
| Speed (6V): 0.08s/60° |
| Geschwindigkeit(5V): 0.10s/60° |
| Family: 20mm Power |
| Weight: 89g |
| Gear: Steel |
| Body: Aluminum |
| Ball Bearings: 2BB |
| Motor: Brushless |
| Softstart: Yes |
| Programmable: No |
| Axis: 5.90/25T/Futaba |
| Width: 20mm |
| Length: 40mm |
| Height: 40mm |
Internal Reference:
S40S
