15mm VERTIKAL Strobe light , 12Wx2, T-Fuse
PIN15VF-120x2-GN
High-performance LED strobe light
High-performance LED strobe light with 12x2W reference power for use as a strobe on various models. The special design of the LEDs allows for optimal side illumination in a very compact form.
Electricity: 14W reference power,
Voltage: 8(12)V, 1.2A
Beam angle: >160°
Light intensity: ~500 Lumen GREEN
Dimension cooling tube: D 8mm, flange 10mm
Dimension light cap: round 15x11mm, cylindric 15x15mm
Total mass: D15mm, 35mm length
Weight: 8g (without cable)
Attention: in case of using the round cap you may need to file off the edges of the chip a bit.

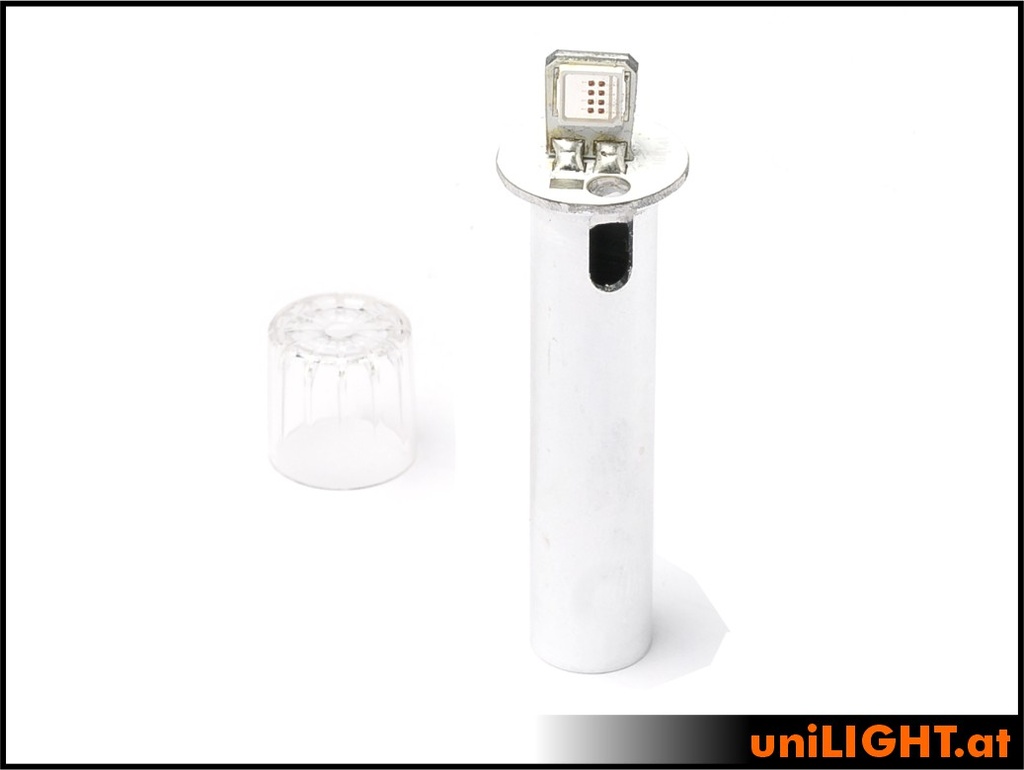

The penlight is delivered pre-assembled and ready for use on a CNC-manufactured aluminum heatsink
2 high-strength polycarbonate caps are included for versatile use.
1x 15mm cylinder cap
Equipped with 1m silicone cable and pre-configured resistor for 2S, use an additional resistor for 3S.
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Colour: Green |
| Design: Round |
| Dimension: 15mm |
| Function: Strobe |
Internal Reference:
PIN15VF-120x2-GN
The caps must be glued separately and can also in some cases be painted in the model color. Any adhesive that does not evaporate is suitable for bonding, such as epoxy, Uhu Allplast, Uhu Por, silicone, Canopy Glue,... When using the small round cap, the ALU PCB may need to be adjusted slightly at the edges.
Please pay attention to the operating temperature, we cannot accept any warranty due to overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
