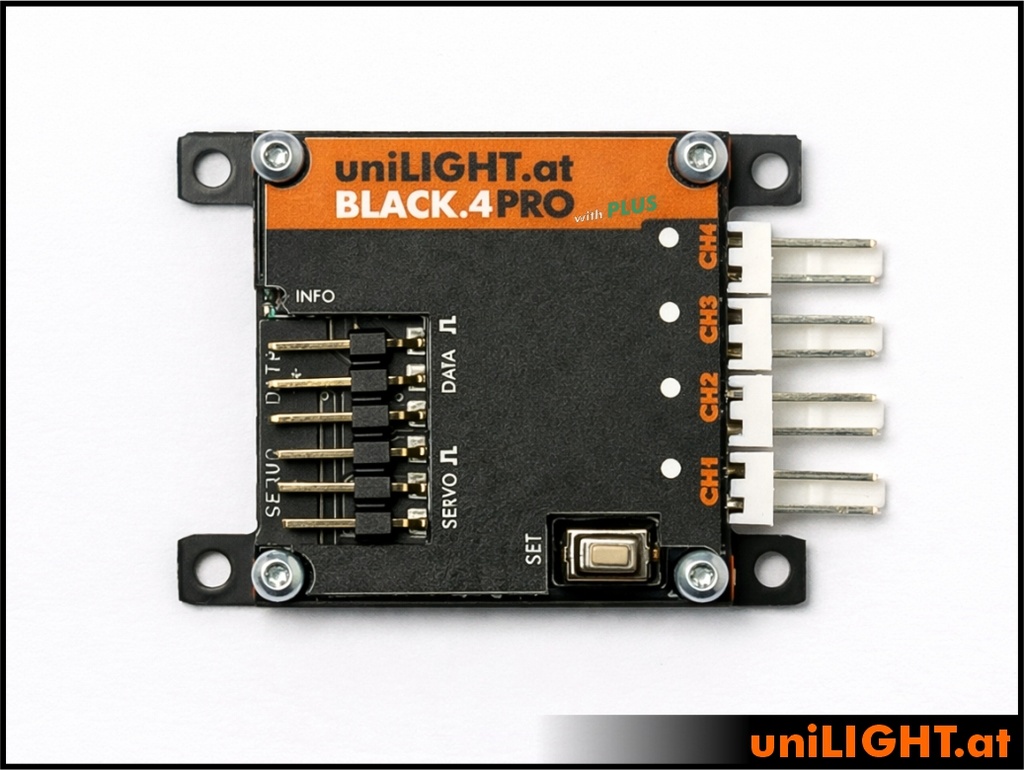

uniLIGHT 4-Kanal, BLACK.4+PRO
MODUL-B4PRO
Extended light controller for professional application: BLACK.4 PRO
Extended PRO version of the most popular lighting controller. The BLACK.4PRO is the most universal controller for all small lighting applications, featuring enhanced software and a more robust design specifically developed for commercial UAV applications.
With the uniLIGHTPLUS interface and configuration via uniLIGHT.DESK, numerous parameters can now be freely configured in addition to the well-known standard functions.
Its primary application remains the simple control of the most common lighting functions: strobes, navigation lights, beacon, and landing lights.
Highlights of the PLUS Serie
Configuration classic operation and custom light patterns can be set
Software compatible with the uniLIGHTDESK
Dynamik more beautiful, faster and sharper defined lighting effects with 32bit depth
Safety basic short-circuit protection of the outputs, undervoltage and temperature protection possible
Master-Slave no switch is necessary in the load circuit, it is only activated by the remote control
Special functions smooth transition switching, navigation+strobe sport function, power min/max limitation
Servo output programmable output for control of the folding mechanism or other servos
Control side receiver 3.6-9.6V
approx. 15g without cable
Dimensions 50x35x10mm
Light signals 4 channels with 6A to 14V (>6A pulse)
Total load up to 10A duration (>10A pulse)
Galvanically isolated system
Operation also possible without RC signal
14+2 classic variable speed lighting scheme
5+1 Custom
Soft switching process programmable
Navigation with flash function programmable
Short circuit protection
Deep discharge protection
Reverse polarity protection
Servo output for operating pop-up headlights, switches or valves
Includes 2 quick-snap mounting brackets and a manual
| Functions: 4CH |
| galvanically isolated: Yes |
| Master/Slave Shutdown: Yes |
| Programmable: PLUS |
| Servoausgang: 1 |
Internal Reference:
MODUL-B4PRO
