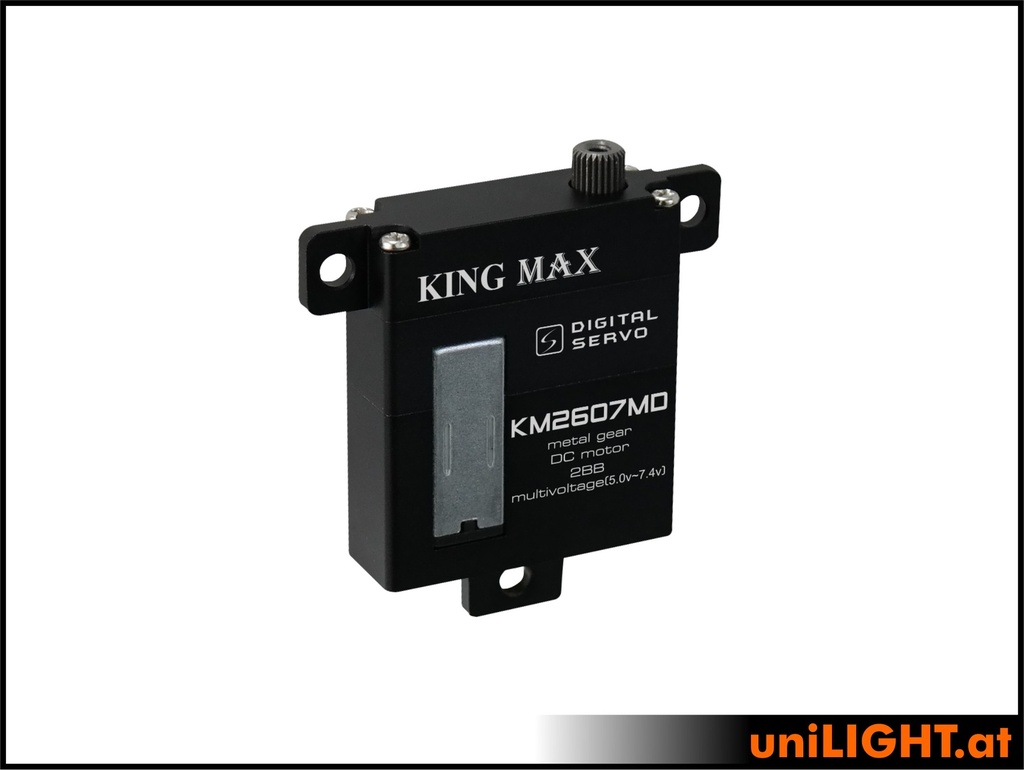

10mm Wing Servo KM2607MD, HV, ALU, MG
KM2607MD
Reliable wing servo of the 10mm class with metal bearings
The Kingmax KM2607MD 10mm Wing Servo is a high-quality, compact servo designed for flat mounting in space-constrained RC applications. With high-voltage (HV) capability, it operates reliably at voltages up to 7.4V, offering consistent performance.
Featuring precision metal gears, this servo ensures smooth, durable operation, ideal for high-demand tasks. Its 10mm profile makes it perfect for lightweight RC models, such as small planes and gliders, where space is limited but reliability is crucial.
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Voltage: DC4.8~8.4 V
Operating Speed (6.0V): 0.13sec/60 degrees
Operating Speed (7.4V): 0.11 sec/60 degrees
Stall Torque (6.0V): 6.4 kg.cm
Stall Torque (7.4V): 7.8kg.cm
Dimentions: 30x10x35.5 mm
Weight: 26.20 g
Bearing: 2BB
Connector Wire Length: JR185 mm
Spline: Exklusiv
Includes an aluminum rudder lever
| Stall Torque (7.4V): 9.70kg.cm |
| Stall Torque (6V): 8.00kg.cm |
| Blockiermoment(5.0V): 7.20kg.cm |
| Speed (7.4V): 0.11sec/60° |
| Speed (6V): 0.13sec/60° |
| Geschwindigkeit(5V): 0.16s/60° |
| Family: 10mm Wing |
| Weight: 28g |
| Gear: Metall |
| Body: Plastic |
| Ball Bearings: 2BB |
| Motor: DC |
| Softstart: No |
| Programmable: No |
| Axis: Exclusive |
| Width: 10mm |
| Length: 30mm |
| Height: 35.5mm |
Internal Reference:
KM2607MD
