15mm Mini-ervo KM2530MD, MG
KM2530MD

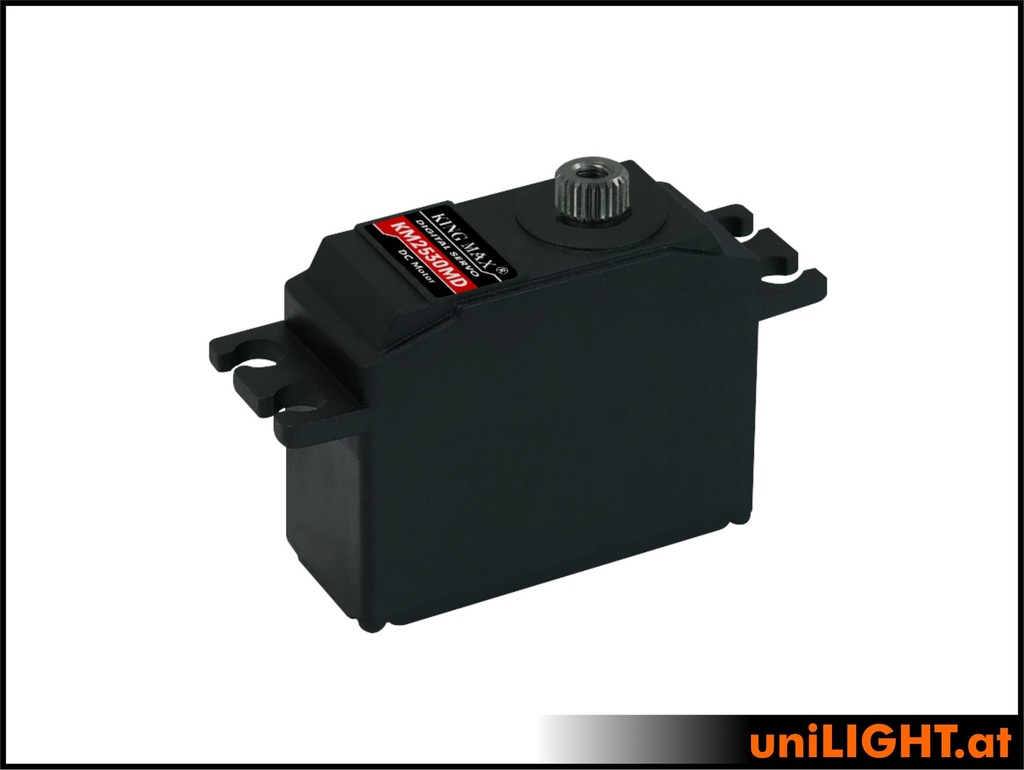

The KM2530MD 15mm Mini Servo is an affordable servo featuring a metal gear train for enhanced durability. A budget-friendly option for those who need a reliable servo for basic applications.
Technical Data:
Dead band: 2μs
Working frequence: 1520μs / 330hz
Working frequence: 1520μs / 330hz
Operating Voltage: DC4.8~6.0 V
Operating Speed (4.8V): 0.12sec/60 degrees
Operating Speed (6V): 0.10 sec/60 degrees
Stall Torque (4.8V): 3.05 kg.cm
Stall Torque (6.0V): 3.65 kg.cm
Dimentions: 36x15x32.4 mm
Weight: 25.65 g
Bearings: 2BB
Connector Wire Length: JR 180 mm
Spline: 25T (Futaba)
| Stall Torque (6V): 3.65kg.cm |
| Speed (6V): 0.10/60° |
| Family: 15mm Mini |
| Weight: 13g |
| Gear: Metall |
| Body: Plastic |
| Ball Bearings: 1BB |
| Motor: DC |
| Softstart: No |
| Programmable: No |
| Axis: 25T/Mini |
| Width: 13mm |
| Length: 25mm |
| Height: 25mm |
Internal Reference:
KM2530MD
