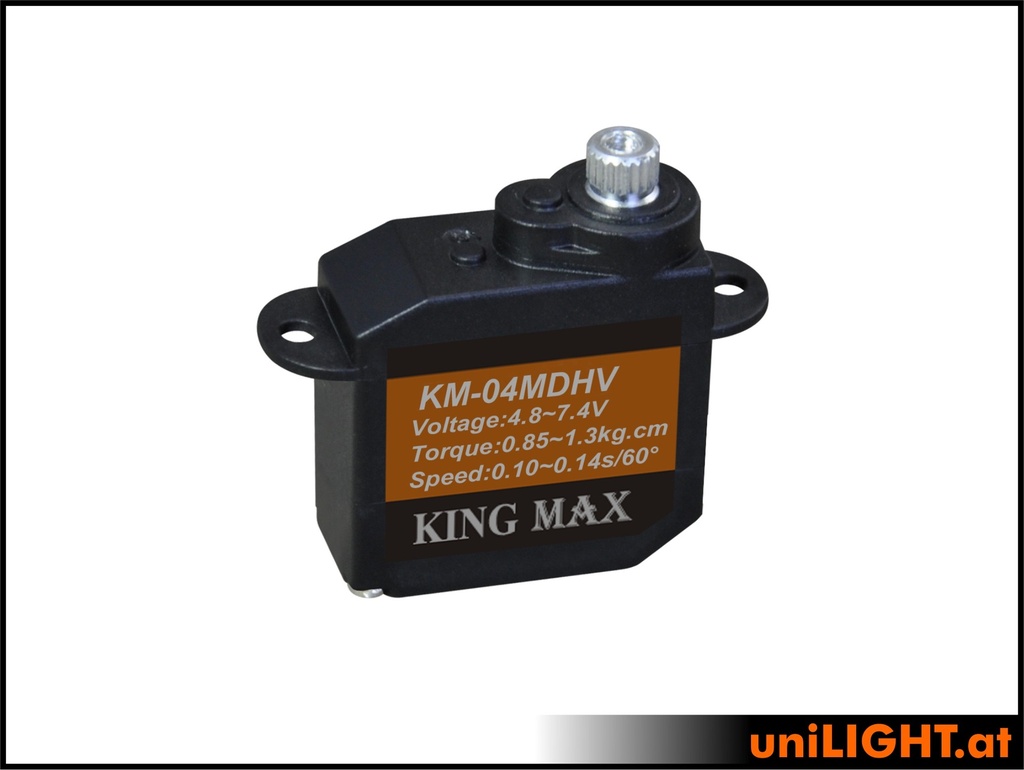

8mm Micro Servo KM04MDHV, HV, MG

8mm Micro Servo KM04MDHV, HV, MG

https://www.unilight.at/web/image/product.template/3194/image_1920?unique=b231891

KM04MDHV

Affordable micro servo with aluminum gears

The KM04MDHV is a budget-friendly micro servo with aluminum gears. It offers smooth and reliable performance with high precision and durability, capable of handling voltages up to 7.4V. Featuring a coreless motor, it is ideal for basic use and small projects.

Technical Data:

Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Voltage: DC4.8~7.4 V
Operating Speed (4.8V): 0.14sec/60 degrees
Operating Speed (6.0V): 0.12 sec/60 degrees
Operating Speed (7.4V): 0.10 sec/60 degrees
Stall Torque (4.8V): 0.85 kg.cm
Stall Torque (6.0V): 1.05kg.cm
Stall Torque (7.4V): 1.30kg.cm
Dimensions: 19.8x8.3x23 mm
Weight: 5.7 g
Connector Wire Length: JR/Futaba 150 mm
Spline: Exklusiv

13.25 € 13.25 EUR 13.25 €

13.25 €

Not Available For Sale

  • Stall Torque (7.4V)
  • Stall Torque (6V)
  • Blockiermoment(5.0V)
  • Speed (7.4V)
  • Speed (6V)
  • Geschwindigkeit(5V)
  • Family
  • Weight
  • Gear
  • Body
  • Ball Bearings
  • Motor
  • Softstart
  • Programmable
  • Axis
  • Width
  • Length
  • Height

This combination does not exist.

Contact Us
Stall Torque (7.4V): 1.60kg.cm
Stall Torque (6V): 1.30kg.cm
Blockiermoment(5.0V): 0.85kg.cm
Speed (7.4V): 0.10s/60°
Speed (6V): 0.12s/60°
Geschwindigkeit(5V): 0.14s/60°
Family: 8mm Micro
Weight: 5.5g
Gear: Metall
Body: Plastic
Ball Bearings: No
Motor: Coreless
Softstart: No
Programmable: No
Axis: Exclusive
Width: 8mm
Length: 19.7mm
Height: 21.8mm

Internal Reference: KM04MDHV
