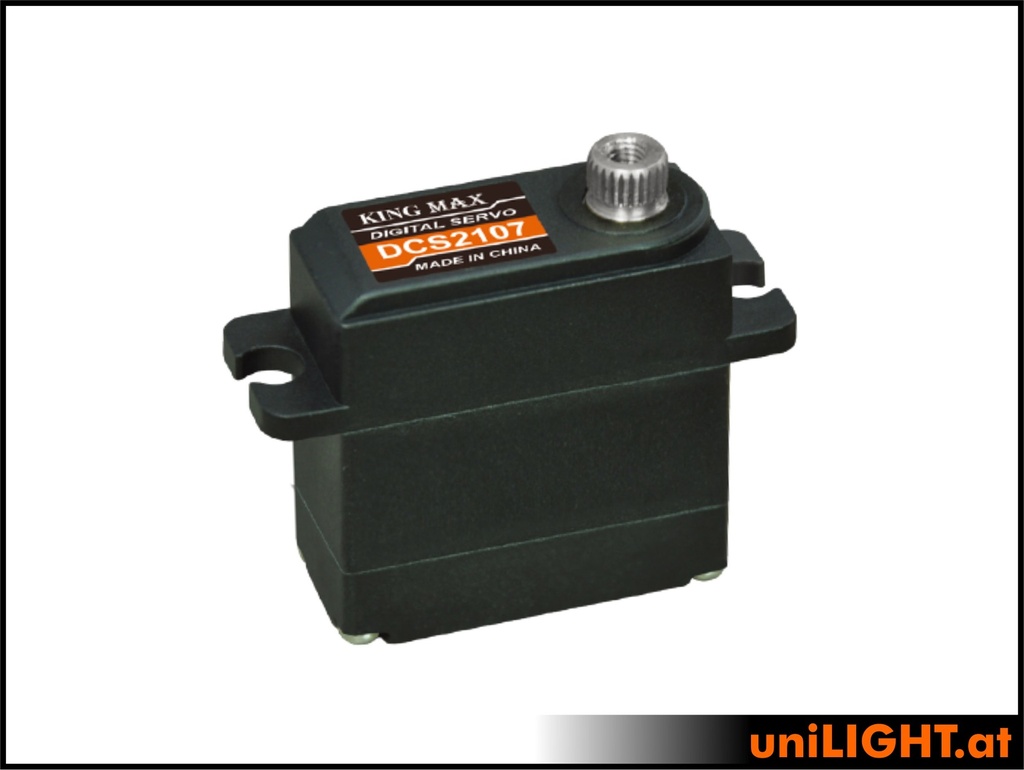

14mm Mini-Servo DCS2107, MG
DCS2107
Miniservo of 14mm class with metal gears and wide movement spectrum
The DCS2107 14mm Mini Servo is a reliable servo in the 14mm class, designed with precision metal gears for smooth and durable performance. Its compact size and robust build make it suitable for a wide range of RC applications where reliability is key. A practical choice for those needing a dependable servo.
Dead band: 2us
Working frequence: 1520μs / 330hz
Operating Voltage: DC4.8~6.0 V
Operating Speed (4.8V): 0.18sec/60 degrees
Operating Speed (6.0V): 0.15 sec/60 degrees
Stall Torque (4.8V): 5.85 kg.cm
Stall Torque (6.0V): 7.12 kg.cm
Dimentions: 29.2X13.9X31mm
Weight: 21.3 g
Bearing: 2BB
Connector Wire Length: JR185 mm
Spline: 25T (Futaba)
| Blokiermoment(5V): 5.85kg.cm |
| Stall Torque (6V): 7.12kg.cm |
| Geschwindigkeit(5V): 0.20s/60° |
| Speed (6V): 0.18s/60° |
| Family: 14mm MINI |
| Weight: 21.3g |
| Gear: Metall |
| Body: Plastic |
| Ball Bearings: 2BB |
| Motor: DC |
| Softstart: No |
| Programmable: Yes |
| Axis: 5.90/25T/Futaba |
| Width: 13.9mm |
| Length: 29.5mm |
| Height: 31.15mm |
Internal Reference:
DCS2107
