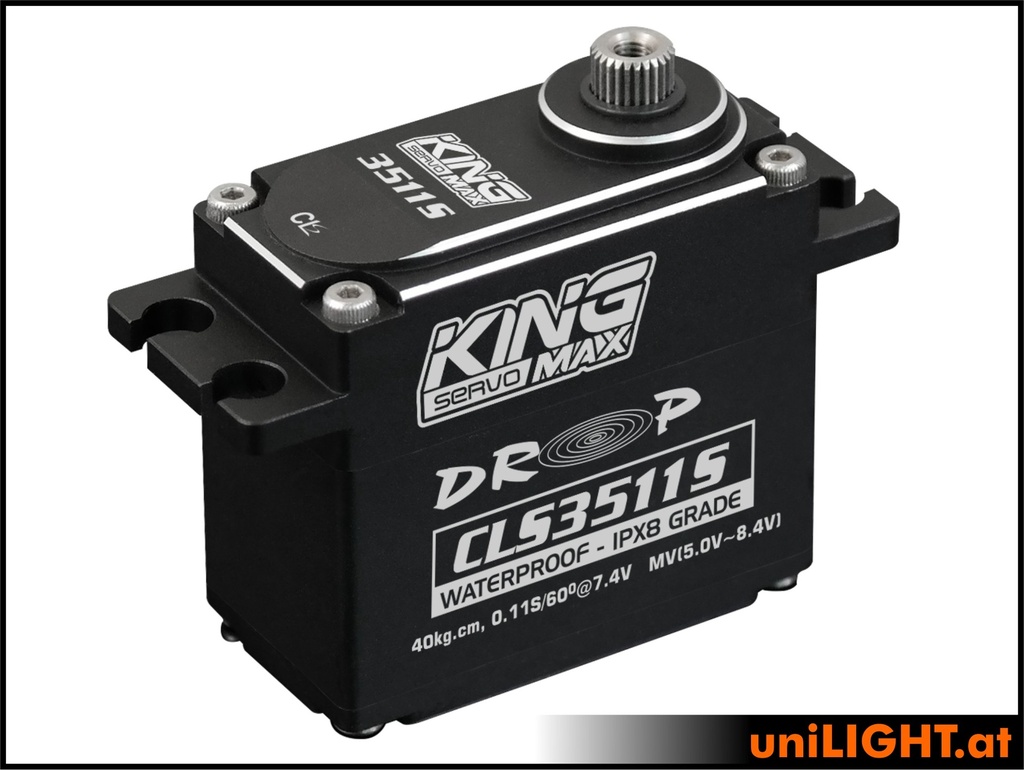

20mm Special Servo CLS3511S, HV, ALU, MG
CLS3511S
The CLS3511S is an industrial-grade specialty servo designed for demanding applications where reliability and performance are key. With IPX8 waterproof certification, it is fully sealed to handle exposure to water and moisture, making it a solid choice for harsh environments. This high-performance digital multivoltage servo supports high-voltage operation up to 8.4V, ensuring efficient power delivery and versatility across different setups.

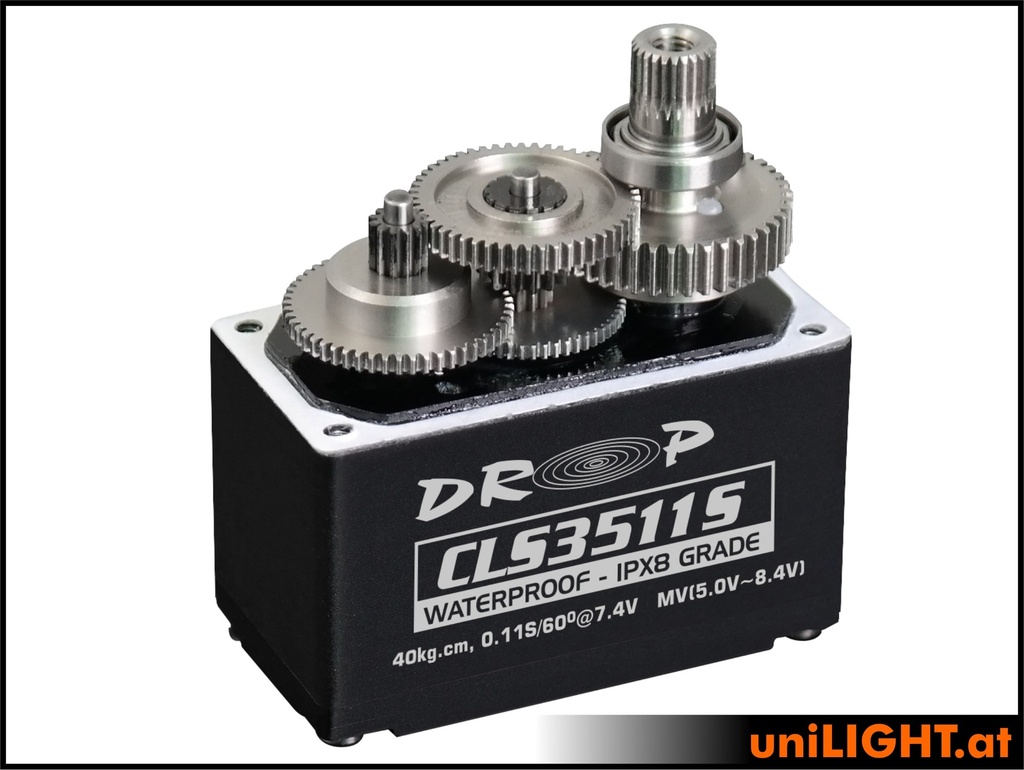

It is equipped with high-precision steel gears for smooth, accurate movement, while the CNC-machined aluminum housing offers excellent durability and strength. The coreless motor delivers reliable performance with minimal wear, and the dual ball bearings enhance the servo’s longevity and efficiency. With a super long working life, the CLS3511S is an ideal choice for those requiring a robust and high-quality servo for a wide range of applications.
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Voltage: DC5.0~8.4 V
Operating Speed (5.0V): 0.15sec/60 degrees
Operating Speed (6.0V): 0.13sec/60 degrees
Operating Speed (7.4V): 0.11sec/60 degrees
Operating Speed (8.4V): 0.10sec/60 degrees
Stall Torque (5.0V): 26kg.cm
Stall Torque (6.0V): 32kg.cm
Stall Torque (7.4V): 40kg.cm
Stall Torque (8.4V): 45.5kg.cm
Dimensions: 40.6x21x37.6mm
Weight: 83.3g
Bearings: 2BB
Connector Wire Length: JR300 mm
Spline: 25T (Futaba)
| Stall Torque (8.4V): 45.5kg.cm |
| Stall Torque (7.4V): 40kg.cm |
| Stall Torque (6V): 32kg.cm |
| Blokiermoment(5V): 26kg.cm |
| Speed (8.4V): 0.10sec/60° |
| Speed (7.4V): 0.11sec/60° |
| Speed (6V): 0.14s/60° |
| Geschwindigkeit(5V): 0.17s/60° |
| Family: 20mm Special |
| Weight: 83.3g |
| Gear: Steel |
| Body: Aluminum |
| Ball Bearings: 2BB |
| Motor: Coreless |
| Softstart: No |
| Programmable: No |
| Axis: 5.90/25T/Futaba |
| Width: 21mm |
| Length: 40.5mm |
| Height: 37.5mm |
Internal Reference:
CLS3511S
