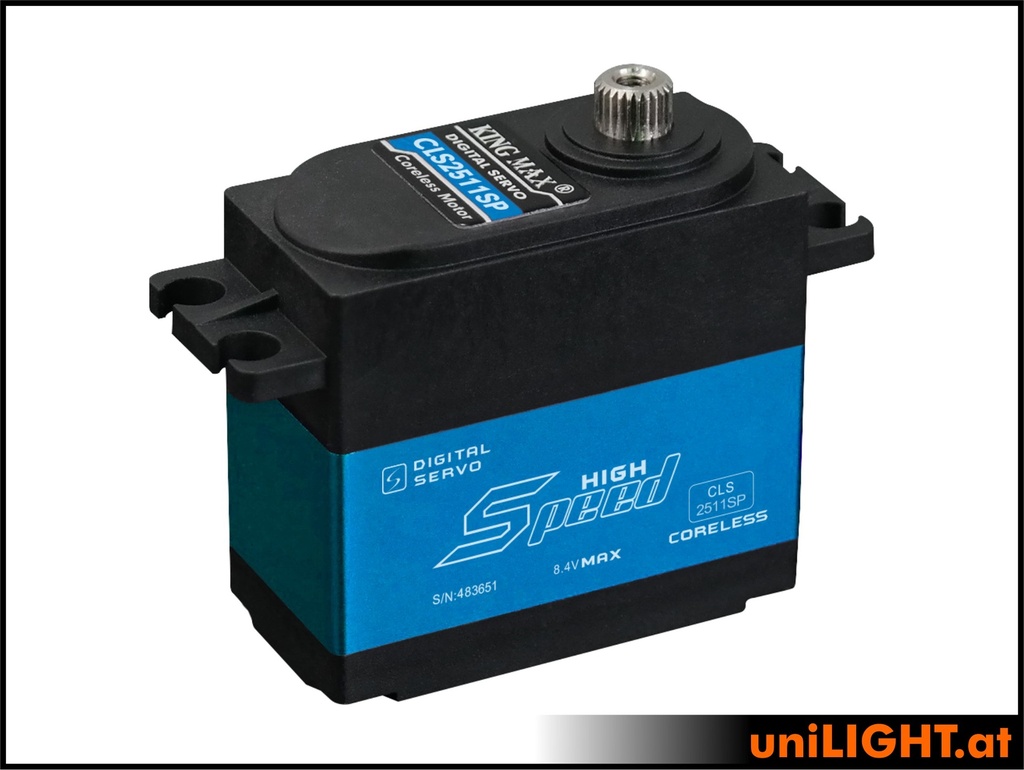

20mm Standard Servo CLS2511SP, HV, MG
CLS2511SP

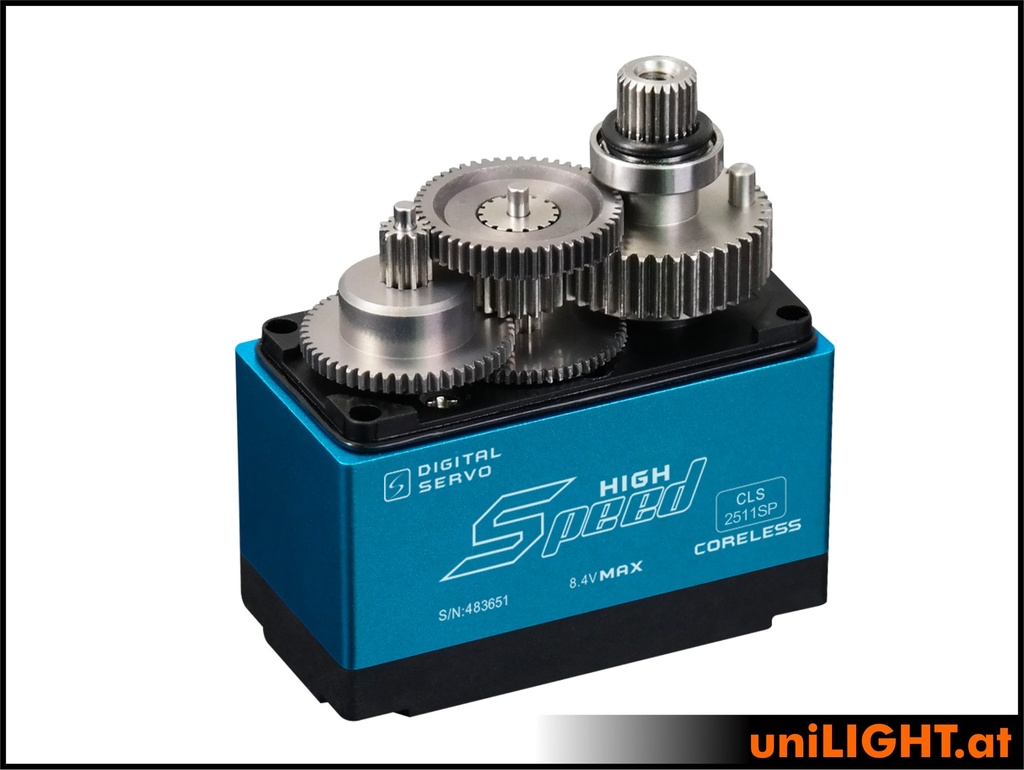

The CLS2511SP 20mm Standard Servo is a powerful and reliable option designed for large-scale models. Equipped with high-precision steel gears and a high-quality coreless motor, this servo delivers exceptional performance and smooth operation.
The servo features a long-life potentiometer for enhanced durability. With a soft-start function and waterproof design, it’s ready for demanding applications. The servo operates efficiently with a high-volt range of up to 8.4V, making it ideal for high-performance setups.
Dead band: 2μs default
Working frequence: 1520μs / 330hz
Operating Voltage: DC6.0~8.4 V
Operating Speed (6.0V): 0.13sec/60 º
Operating Speed (7.4V): 0.11sec/60 º
Operating Speed (8.4V): 0.10sec/60 º
Stall Torque (6.0V): 22.3kg.cm
Stall Torque (7.4V): 25kg.cm
Stall Torque (8.4V): 28.5 kg.cm
Dimensions: 40x20x40.9mm
Weight: 80g
Bearings: 2BB
Connector Wire Length: 300mm
Spline: 25T (Futaba)
Water Resistant
| Stall Torque (8.4V): 28.5kg.cm |
| Stall Torque (7.4V): 25kg.cm |
| Stall Torque (6V): 22.3kg.cm |
| Blokiermoment(5V): 20.2kg.cm |
| Speed (8.4V): 0.10sec/60° |
| Speed (7.4V): 0.11sec/60° |
| Speed (6V): 0.13sec/60° |
| Geschwindigkeit(5V): 0.15s/60° |
| Family: 20mm Economy |
| Weight: 73g |
| Gear: Steel |
| Body: Teil-Aluminium |
| Ball Bearings: 2BB |
| Motor: Coreless |
| Softstart: Yes |
| Programmable: Yes, 180° possible |
| Axis: 5.90/25T/Futaba |
| Width: 20mm |
| Length: 40.5mm |
| Height: 39mm |
Internal Reference:
CLS2511SP
