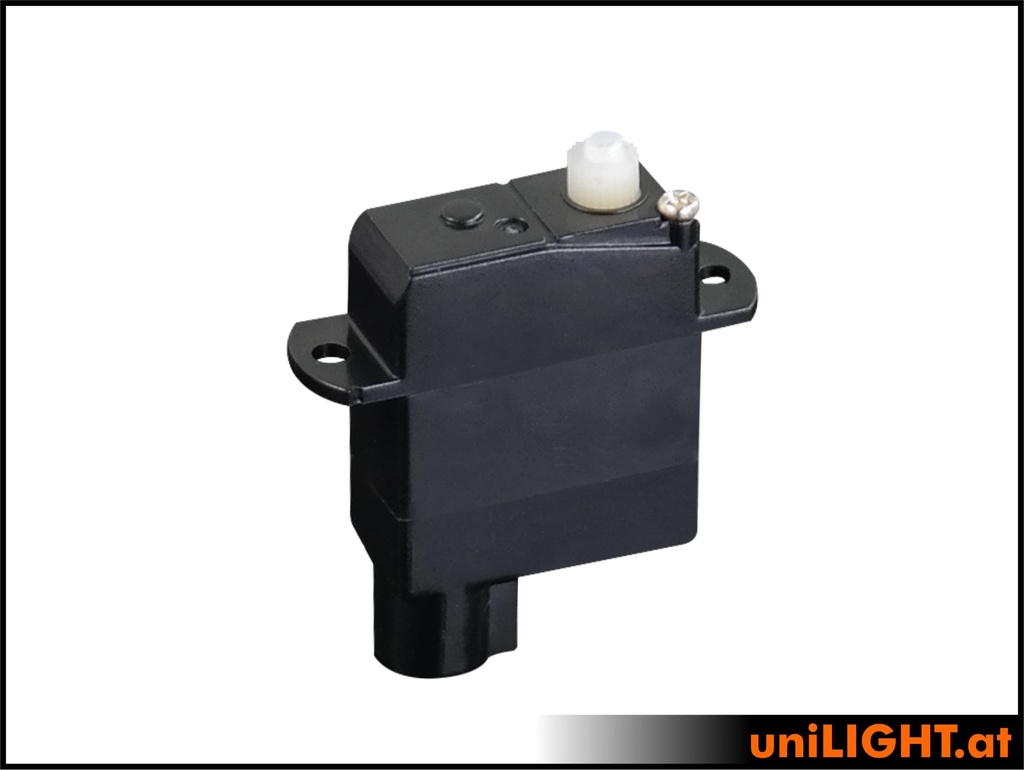

6mm Micro Servo CLS00805
CLS00805
The CLS00805 is an affordable 6mm microservo, offering basic performance for lightweight applications.
Technical Data:
Dead band: 2us
Working frequence: 1520μs / 330hz
Operating Voltage: DC3.5~5.0 V
Operating Speed (3.5V): 0.07sec/60 degrees
Operating Speed (5.0V): 0.06sec/60 degrees
Stall Torque (3.5V): 0.6 kg.cm
Stall Torque (5.0V): 0.8 kg.cm
Dimentions: 13.5*6.2*16mm
Weight: 1.8 g
Bearing: 1BB
Connector Wire Length: 85 mm
Spline: Exklusiv
| Blockiermoment(5.0): 0.08kg.cm |
| Blockiermoment(3.5V): 0.06kg.cm |
| Geschwindigkeit(5V): 0.05sec/60° |
| Geschwindigkeit(3.5V): 0.07s/60° |
| Family: 6mm Micro |
| Weight: 2g |
| Gear: Plastic |
| Body: Plastic |
| Ball Bearings: No |
| Motor: Coreless |
| Softstart: No |
| Programmable: No |
| Axis: Exclusive |
| Width: 6mm |
| Length: 13.5mm |
| Height: 16mm |
Internal Reference:
CLS00805
