9mm rectangular Spotlight
SPOT9R20-050x2

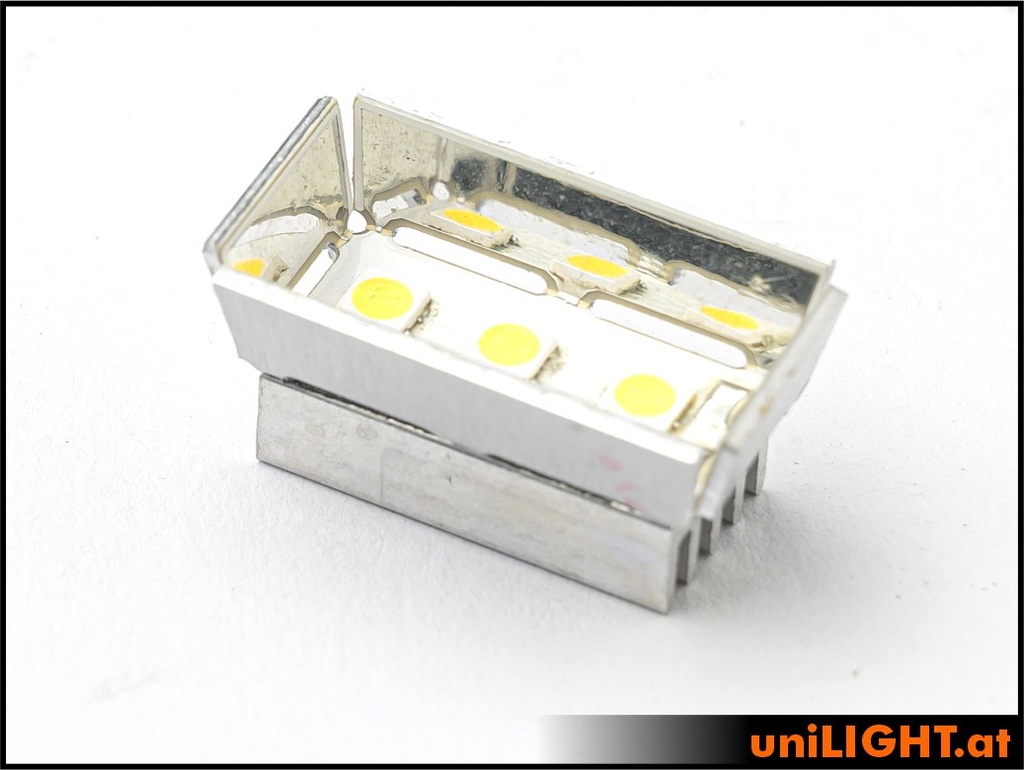

9mm rectangular spotlight
The compact rectangular spotlight with 9x20mm base plate is a great alretnative for installation on landing gear, flaps or wings.
Three high-performance chips are mounted on an aluminum base plate. Side reflectors can also be removed if necessary. To avoid overheating and damage the included heatsink has to be attached to the light with an appropriate adheasive. Alternatively, the light can be mounted directly on a landing gear without a heatsink.
Performance: 5Wx2 reference power
Voltage: 8V, use an additional resistor for 12V!
Electric current: 0.4A
Beam angle: 100°
Light intensity: ~370 Lumen WHITE
Light intensity: ~310 Lumen WARMWHITE
Dimension: D24x14x11mm
Weight: 4g (without cable)
Perfect for landing gear, flaps and wings
Equipped with a 0,5m connection cable.
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 0.5m PTFE 0,14mm² |
| Design: eckig |
| Dimension: 9mm |
| Function: Spot |
Pay attention to the operating temperature; we cannot guarantee against overheating.
Caution: The LED lights are extremely bright! Never look directly into an LED!
