50mm Drop-out Spotlight, 13Wx2, T-FUSE, HV
FLIP50HVF-130x2

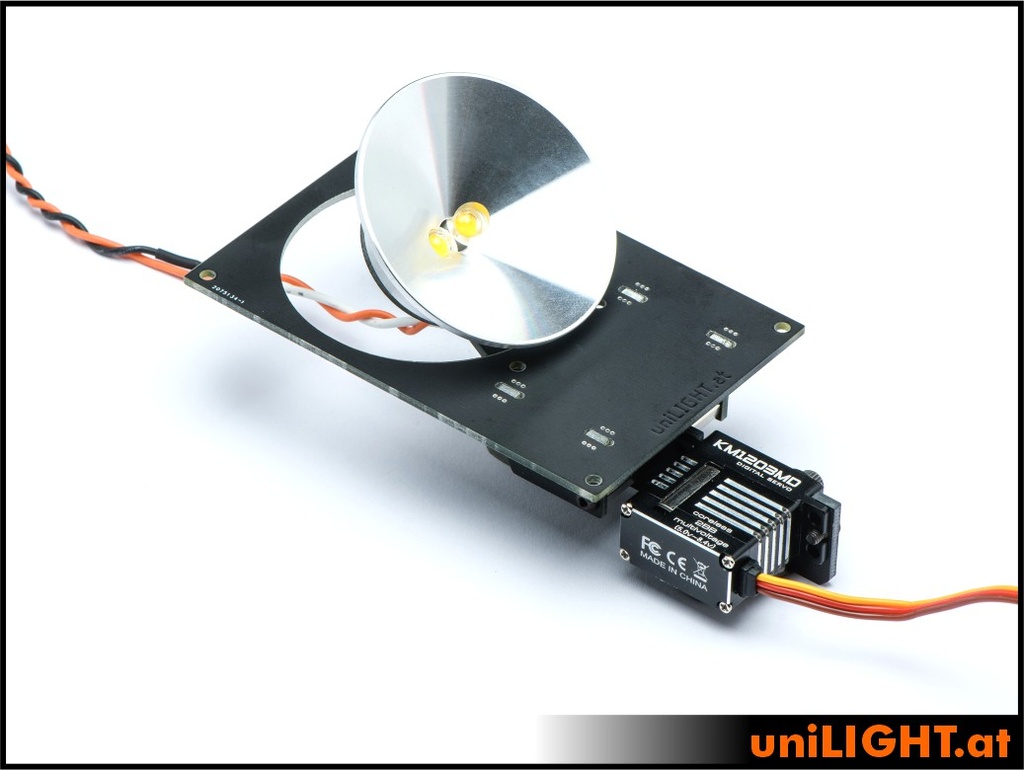

High-performance 50mm drop-out spotlight
High-performance drop-out spotlight now easier than ever. Inspired by many full-scale aircraft, this feature can now be quickly and effortlessly integrated into model planes. An excellent addition for any aircraft, whether for scale realism, as a brake flap, or simply for practical use! Now with HV Servo, making it compatible with any system.
Our pre-assembled headlights use flat 50mm 13Wx2 spotlights with thermal protection. These allow for enormous light output despite their compact dimensions. The mechanical system includes an HV servo (including metal gears); all you need to do is determine the mounting position and screw on the linkage. The design, with the included parts, allows for two different mounting positions: a flat design for installation in the wing, or for installation in the fuselage, with the servo positioned above the axle.
Performance: 13Wx2 reference power
Overheating protection: the lights will safely turn off/be cycled at 65-70°C.
Voltage: 8V, use an additional resistor for 12V!
Electric current: 1.05A
Beam angle: ~100°
Light intensity: ~770 Lumen WHITE
Weight: 60g (including servo)
Mounting base: 58x90mm
Mounting BEHIND the axle height: 17/24mm
Mounting OVER the axle height: 36/39mm
Overheating protection: the lights will safely turn off/be cycled at 65-70°C.
Ready assembled with 1m connection cable
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: Round |
| Dimension: 50mm |
| Function: Flip Spotlights |
Please pay attention to the operating temperature, we cannot accept any warranty due to overheating.
After installation, check the temperatures. The service life of the LED suffers if it is constantly operated at the upper power limit.
Attention: The LED lights are extremely bright! Never look directly into an LED!
