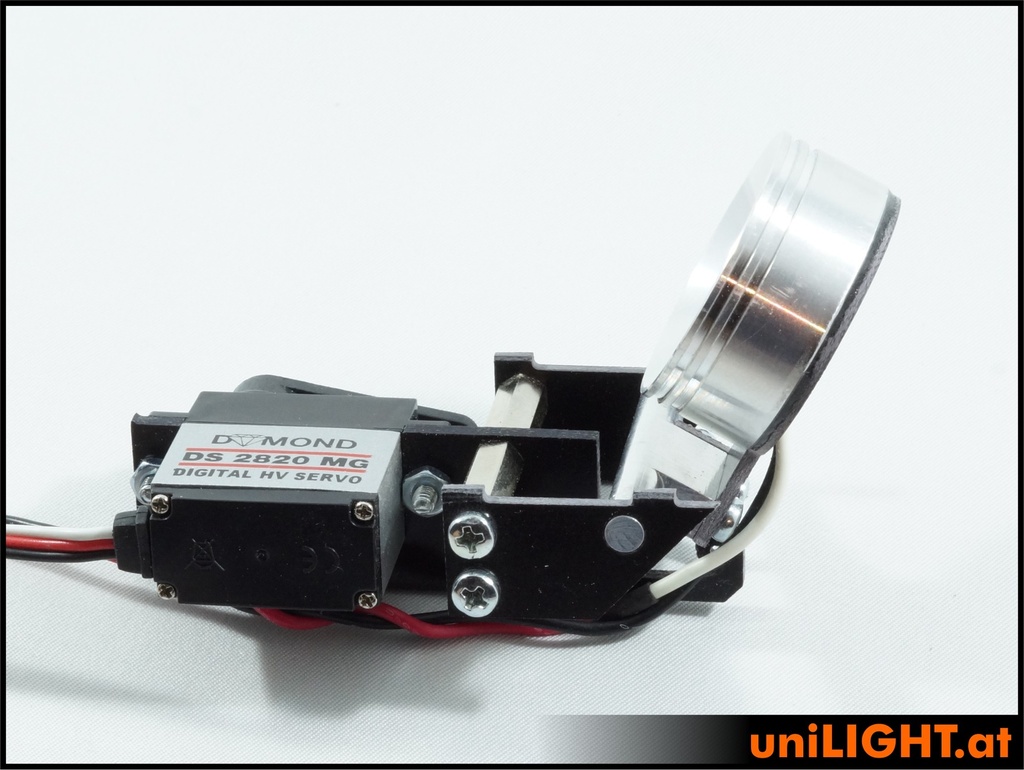

30mm Drop-Out Spotlight HVF, 8Wx2, T-FUSE
Powerful high-performance spotlight in a compact casing.
Drop-out spotlight with the latest generation chip, now easier than ever. Inspired by many full-scale aircraft, this feature can now be quickly and effortlessly integrated into model planes. An excellent addition for any aircraft, whether for scale realism, as a brake flap, or simply for practical use!
Our pre-assembled spotlights feature flat 30mm 8Wx2 lights with built-in thermal fuse, delivering impressive brightness in a compact form. The mechanism uses a Kingmax KM1203 HV servo; you only need to determine the mounting position and secure the linkage. The design allows two different mounting positions of the rotation axis relative to the servo: in front of the axis or, for fuselage installation, above the axis.
Power: 8Wx2 reference power
Overheating protection: the lights will safely turn off/be cycled at 65-70°C
Voltage: 8V, use additional resistor for 12V!
Current: 0.7A
Beam angle: ~110°
Light intensity: 430 lumens WHITE
Light intensity: 400 lumens WARM WHITE
Weight: 50g (with servo)
Dimensions frame: 91x35mm, height 14mm
Mounting BEHIND axle
Dimensions: 97.5x40mm, height 18.5mm
or hanging freely: 62.5x40mm, height 18..5mm
Mounting BEFORE axle
Dimensions: 97.5x40mm, height 18.5mm
Mounting via axle
Dimensions: 69x40mm, height 38mm
Overtemperature protection: at 65-70° the light is switched off or switched off safely

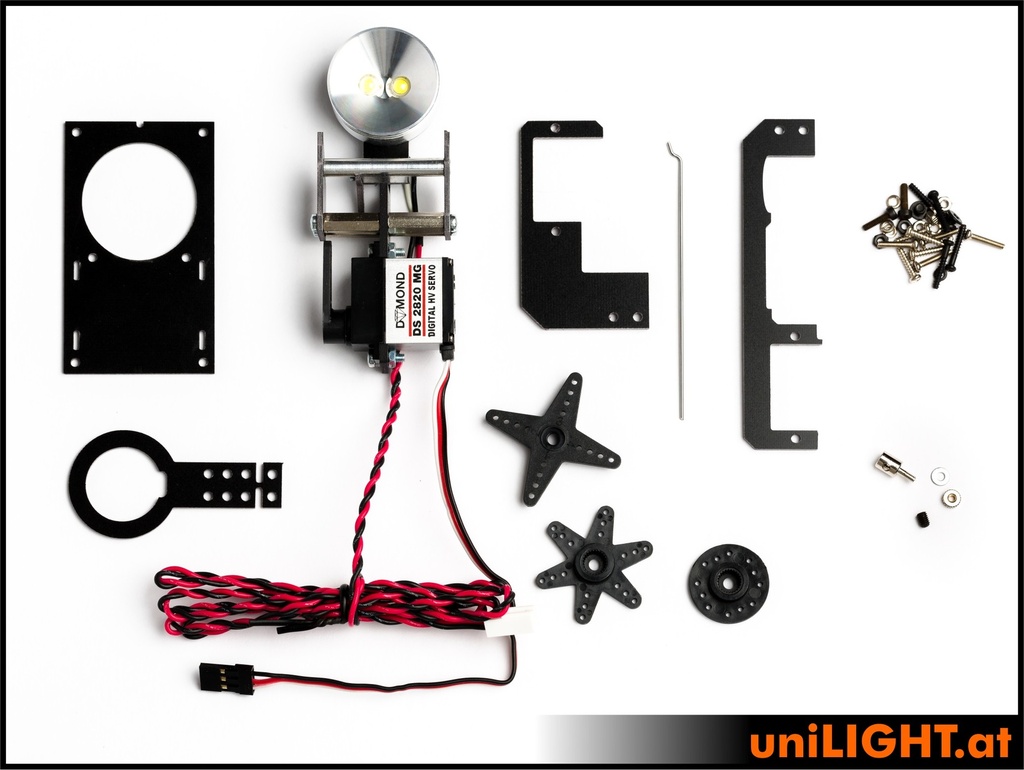

Ready assembled with 1m connection cable
This product is no longer available.
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: Round |
| Dimension: 30mm |
| Function: Flip Spotlights |
Documents
Please pay attention to the operating temperature, we cannot accept any warranty due to overheating.
After installation, check the temperatures. The service life of the LED suffers if it is constantly operated at the upper power limit.
Attention: The LED lights are extremely bright! Never look directly into an LED!
