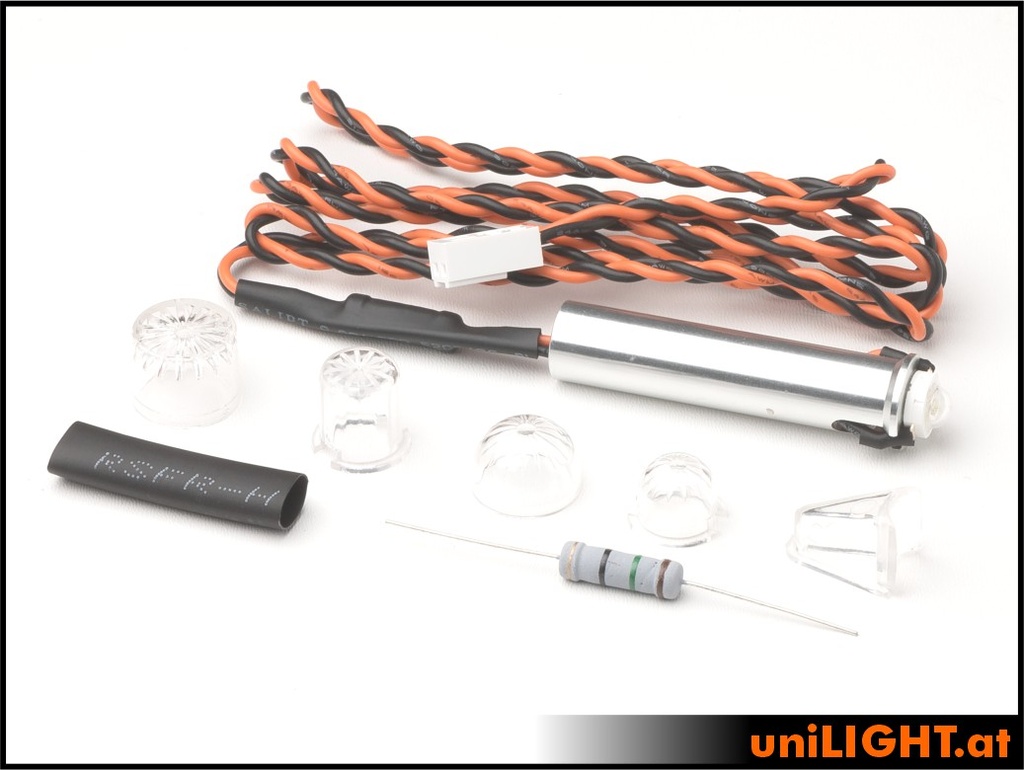

10mm PIN Strobe Light, 8x2W, T-Fuse
PIN10F-080x2
Slim strobe light with 500 lumens light output
Slim LED high-performance strobe light with 8W reference power and x2 chip technology for operation as a very powerful strobe light on a wide range of models. The pen light is delivered pre-assembled and ready for use on a CNC-manufactured aluminum heat sink, and includes 5 high-strength polycarbonate caps for versatile use.
The light is equipped with an integrated thermal fuse that shuts off at 65°C and automatically reactivates after cooling down. Its thermal design is intended for use as a strobe or beacon, and using it as a position light would lead to early shutdown.
Electrical: 8W reference power,
Overheating protection: the lights will safely turn off/be cycled at 65-70°C
Voltage: 8(12)V, 0.6A
Beam angle: >160°
Light intensity: ~190 lumens RED
Light intensity: ~270 lumens GREEN
Light intensity: ~470 lumens WHITE
Dimensions mounting pin: D10x45mm, flange to cap D12mm
Dimensions of light cap: D10x12.5mm, flange to carrier D12mm
Overall dimensions: D10x12mm, 57.5mm length
Weight: 5g (without cable)
Equipped with 1m silicone cable and pre-configured resistor for 2S, use an additional resistor for 3S.
1x 10mm cylinder cap
1x 10mm round cap
1x 13mm cylinder callus
1x 13mm round cap
1x 10mm profile extension
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: Round |
| Function: Navigation/Position Light |
| Dimensions: 10mm |
The caps can be glued separately before or after installing the light and/or painted in the model color. Any adhesive that does not evaporate is suitable for bonding, such as epoxy, Uhu Por, silicone, canopy glue,...
Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. However, these lights are only suitable for flash operation, as they would quickly overheat if left on continuously. Duty cycle up to approx. 20%.
We cannot guarantee against overheating. Information on the reference power is only a comparison value between the lamps offered. They usually refer to an operating voltage of 12V/3S Lipo.
Attention: The LED lights are extremely bright! Never look directly into an LED!
