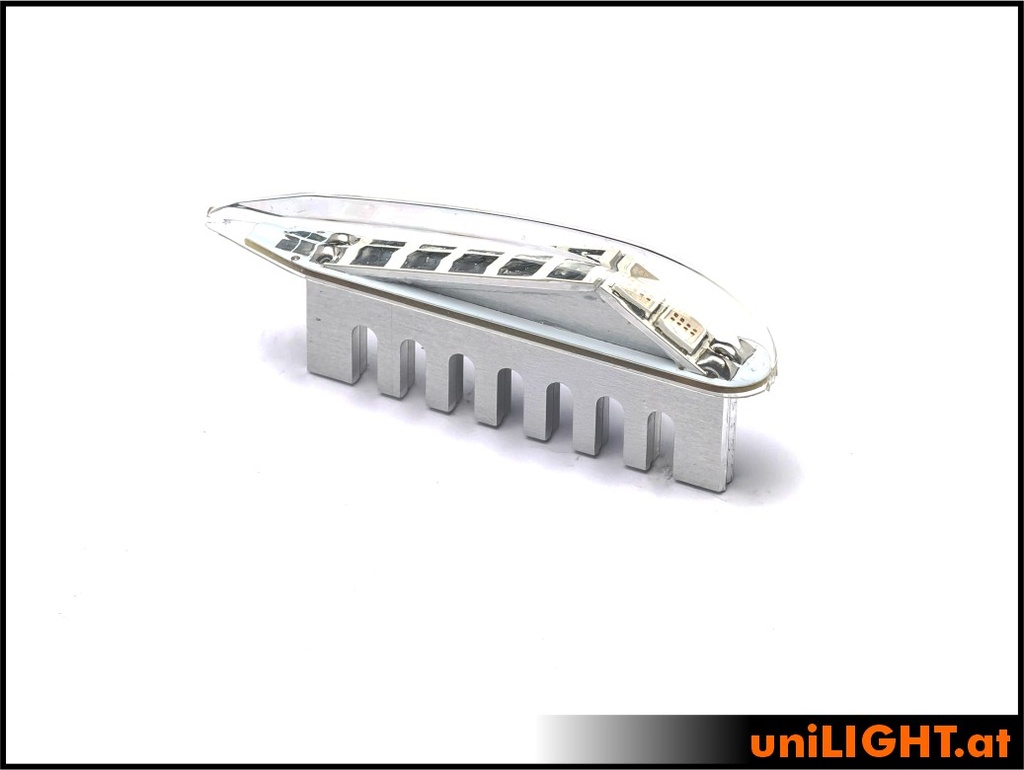

10mm Navigationslight, 6Wx2, SHORT

https://www.unilight.at/web/image/product.template/7267/image_1920?unique=a61d88b

PRO10X-060x2

Best light performance, optimal functionality with the new 10mm lights - top choice for sport models!

Up to 500 lumens of light output deliver extreme visibility for sport jets and performance models when uncompromising lighting power is required! The ultra-compact design with a short heat sink allows for integration even in very narrow areas on the fuselage or rudder, while the slim design is ideal for functional models.

The highly transparent polycarbonate cover cap ensures robust installation and optimal light distribution – guaranteed optimal visibility in all areas.

Technical Data:

Performance: 6Wx2 Reference power
Voltage: 0.5A
Operating voltage: 8V/2S, 12V/3S with additional resistor
Beam angle: 0 to 120° RED/GREEN, 60° to 180° WHITE
Light intensity: ~150 Lumen ROT
Light intensity: ~250 Lumen GRÜN
Light intensity: ~450 Lumen WEISS
Dimensions: 10x68x26mm
Weight: 12g (without cable)

Delivery Content:

Equipped with 1m silicone connection cable, fully assembled with high-quality polycarbonate cap

24.92 € 24.92 EUR 24.92 €

24.92 €

Not Available For Sale

  • Operating Voltage
  • Cable Length
  • Colour
  • Design
  • Function
  • Dimensions

This combination does not exist.

Operating Voltage: 2S/8V or 3S/12V with additional resistor
Cable Length: 1m Silicone 0.25mm²
Design: profile-shaped
Function: Navigation/Position Light
Dimensions: 10mm

Short URL

Assembly Instruction:

Use additional resistor for 3S operation.
The cap must be glued to the light module on the model.

Warning Notice:

Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating. Attention: The LED lights are extremely bright! Never look directly into an LED!
