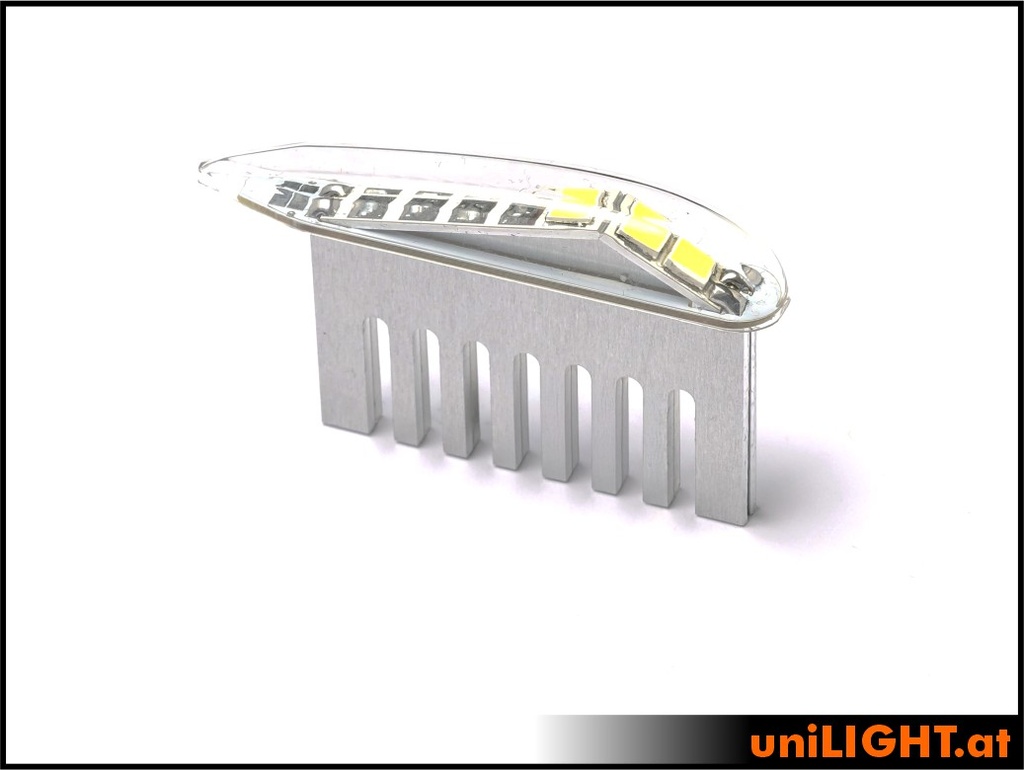

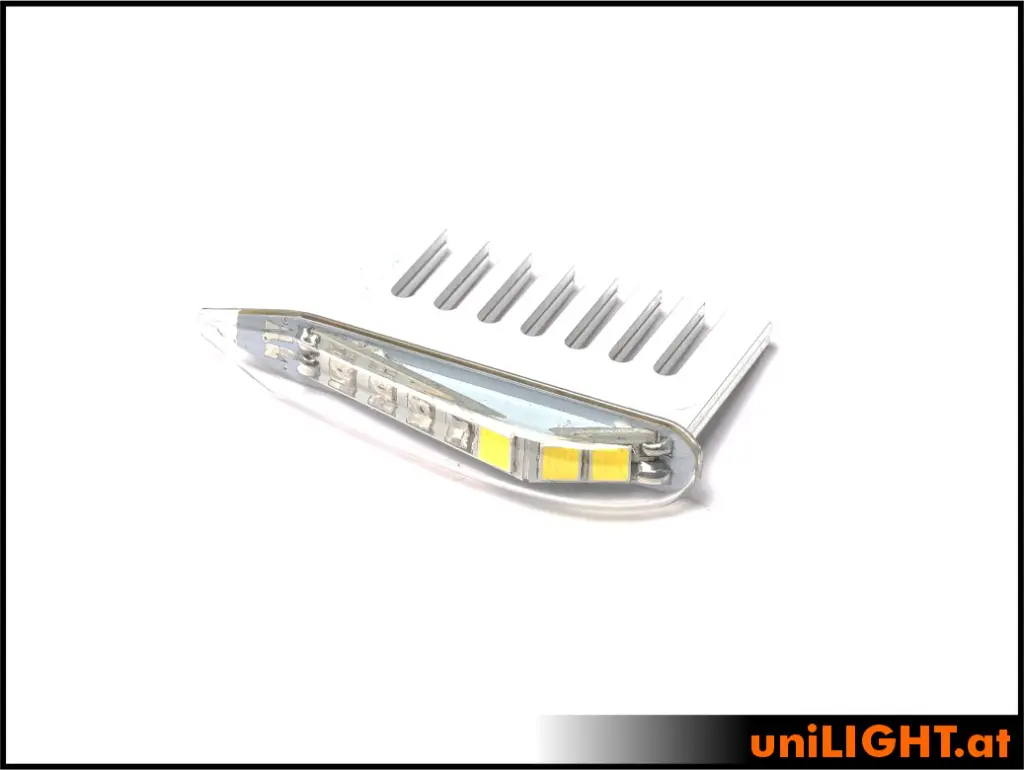

10mm Navigationslicht, 7.5Wx2
PRO10-075x2
Best light performance, optimal functionality with the new 10mm lights - top choice for sport models!
Up to 600 lumens of light output deliver extreme visibility for sport jets and performance models when uncompromising lighting power is required! The ultra-compact design with a short heat sink allows for integration even in very narrow areas on the fuselage or rudder, while the slim design is ideal for functional models.
The highly transparent polycarbonate cover cap ensures robust installation and optimal light distribution – guaranteed optimal visibility in all areas.
Performance: 7.5Wx2 Reference power
Voltage: 0.6A
Operating voltage: 8V/2S, 12V/3S with additional resistor
Beam angle: 0 to 120° RED/GREEN, 60° to 180° WHITE
Light intensity: ~200 Lumen ROT
Light intensity: ~300 Lumen GRÜN
Light intensity: ~600 Lumen WEISS
Dimensions: 10x68x41mm
Weight: 18g (without cable)
Equipped with 1m silicone connection cable, fully assembled with high-quality polycarbonate cap
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: profile-shaped |
| Function: Navigation/Position Light |
| Dimensions: 10mm |
Use additional resistor for 3S operation.
The cap must be glued to the light module on the model.
Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating. Attention: The LED lights are extremely bright! Never look directly into an LED!
