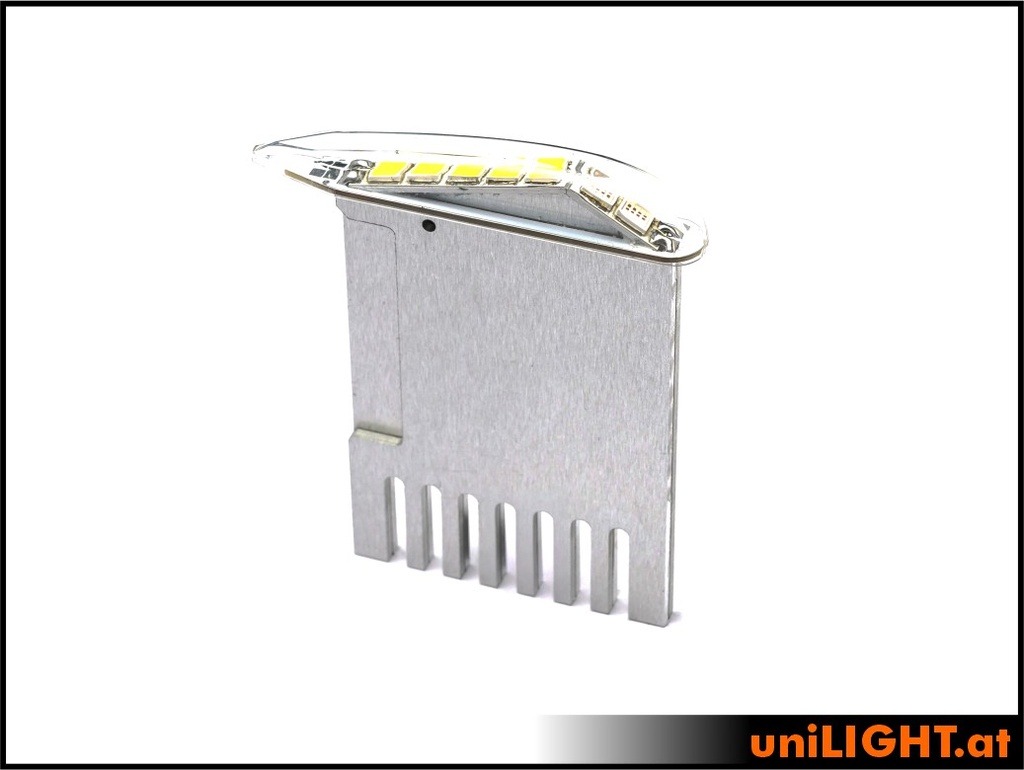

10mm DUAL Navigation + Strobe, 47Wx2, T-FUSE

https://www.unilight.at/web/image/product.template/7265/image_1920?unique=a61d88b

DUAL10F-470x2

Best light performance, optimal functionality with the new 10mm lights - top choice for sport models!

With 2900 lumens of strobe power, the DUAL10F not only offers strong navigation visibility, but is also the most powerful model in the 10mm class with impressive flash effects. Its slim design makes it ideal for sport jets, performance models, and anywhere where uncompromising lighting performance meets minimal installation space. Operating voltage only possible with 2S!

The highly transparent polycarbonate cover cap ensures robust installation and optimal light distribution – low glare, guaranteed maximum visibility in all areas.

Perfect for anyone who wants to easily integrate navigation and strobe lighting into one model – compact, powerful, reliable.

Technical Data:

Performance: 9Wx2 RED/GREEN and 38Wx2 WHITE reference power,
Voltage: 0.8A RED/GREEN, 3.2A WHITE,
8V/2S
Beam angle: 0 to 120° RED/GREEN, 60° to 180° WHITE
Light intensity: ~240 Lumen RED
Light intensity: ~370 Lumen GREEN
Light intensity: ~2880 Lumen WHITE
Dimension: 10x68x61mm
Weight: 28g (without cable)

Delivery Content:

Equipped with 1m silicone connection cable, fully assembled with high-quality polycarbonate cap

49.92 € 49.92 EUR 49.92 €

49.92 €

Not Available For Sale

  • Operating Voltage
  • Cable Length
  • Colour
  • Design
  • Function
  • Dimensions

This combination does not exist.

Operating Voltage: 2S/8V
Cable Length: 1m Silicone 0.5mm²
Design: profile-shaped
Function: Dual Navigation/Strobe
Dimensions: 10mm

Short URL

Assembly Instruction:

The cap must be glued to the light module on the model.

Warning Notice:

Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating. Attention: The LED lights are extremely bright! Never look directly into an LED!
