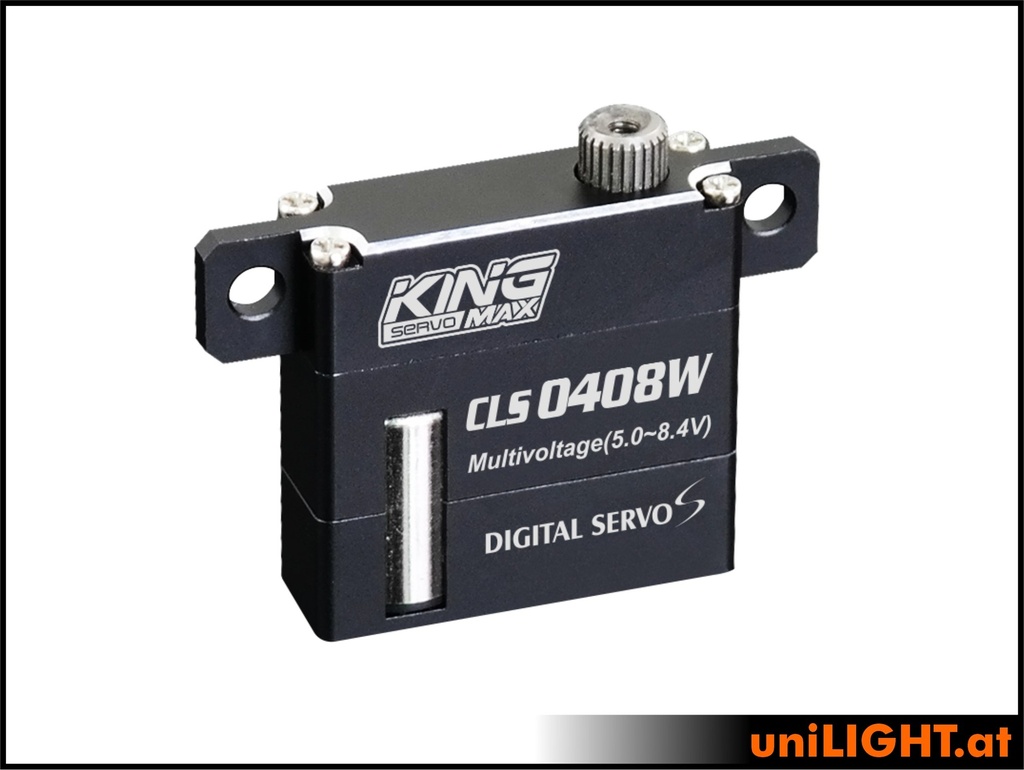

8mm Micro Wing Servo CLS0408W, HV, ALU
CLS0408W
Compact high-end wing servo of the 8 mm range
The CLS0408W 8mm Wing Servo is a high-end, compact servo designed for flat mounting in tight spaces. Despite its small size, this servo offers impressive performance, with a coreless motor and high-precision, hard-anodized metal gears for durability and reliability. Its full CNC aluminum housing ensures superior strength and heat dissipation, while dual ball bearings guarantee smooth operation.
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Voltage: DC5.0~8.4 V
Operating Speed (5.0V): 0.13sec/60 degrees
Operating Speed (6.0V): 0.10sec/60 degrees
Operating Speed (7.4V): 0.08sec/60 degrees
Operating Speed (8.4V): 0.07sec/60 degrees
Stall Torque (5.0V): 2.8kg.cm (38.89oz/in)
Stall Torque (6.0V): 3.2kg.cm (44.44oz/in)
Stall Torque (7.4V): 4.0kg.cm (55.56oz/in)
Stall Torque (8.4V): 4.5kg.cm (62.50oz/in)
Dimentions: 25X8X24.8mm
Weight: 16.7g(0.58oz)
Bearings: 2BB
Connection cable: JR300 mm
Spline: 25M
| Stall Torque (8.4V): 4.5kg.cm |
| Stall Torque (7.4V): 4.00kg.cm |
| Stall Torque (6V): 3.2kg.cm |
| Blockiermoment(5.0): 2.80kg.cm |
| Speed (8.4V): 0.07s/60° |
| Speed (7.4V): 0.08/60° |
| Speed (6V): 0.10/60° |
| Geschwindigkeit(5V): 0.13s/60° |
| Family: 8mm Wing |
| Weight: 17g |
| Gear: Metall |
| Body: Aluminum |
| Ball Bearings: 2BB |
| Motor: Coreless |
| Softstart: No |
| Programmable: No |
| Axis: Exclusive |
| Width: 8mm |
| Length: 25mm |
| Height: 24mm |
Internal Reference:
CLS0408W
